Quam's Fire Signaling and mass notification 2’ x 2’ Tile Replacement Loudspeaker 25/70 V UL22DM

Be the first to review this product

MODEL: UL22DM

Regular Price: $211.76

Special Price: $191.91

Add to Cart

OR

Product Features

Features:



  • Average Sensitivity Sound Pressure dB-SPL @10' per Tap: 1/4W = 78.7dB, 1/2 = 80.7, 1 = 81.5, 2 = 84.3, 4 = 87.4

  • Loudspeaker Power Rating: 20W RMS, EIA 426A Standard

  • Magnet Type & Weight: BeFe Ceramic, 10 oz. Nominal

  • Frequency Response: 60Hz - 17kHz, EIA 426A Standard

  • Nominal Coverage Angle: 100° Included Angle, -6dB/2kHz, Half space

  • Audio Connection: Dual Set of 6", Color-coded, Pre-cut and Tinned Leads

  • Dimension: 3 ½" (H) x 23 13⁄16" (W) x 23 13⁄16" (D)

  • Weight: 9 lbs.

  • Loudspeaker Model: 8C10PAFR

  • Loudspeaker Specs: 8" O.D. loudspeaker, 10 oz. magnet, fire retardant

  • Transformer: 4W, 25V (yellow) and 70V (red)rotary select with 5 taps (0.25W, 0.50W, 1W, 2W, 4W)

  • Integral Enclosure: 1,283 CID, molded fiber

  • Grille: Perforated steel with four (4) seismic tie-off points

  • Finish: White powder coat finish

  • UL Listed 1480 (UUMW) TYPE F When installed with supplied installation instructions and requirements of NEC/AHJ

  • UL Listed 2043 Suitable for use in air-handling spaces

  • ASTM E84 Includes integral backbox that meets/exceeds flame and smoke test w/ 3hr. burn rating

  • Intended Use: Mass notification and emergency communications

  • Program Material: Signal tones and voice

  • Installation: Fits into a 2' x 2' or 2' x 4' wide ceiling tile grid

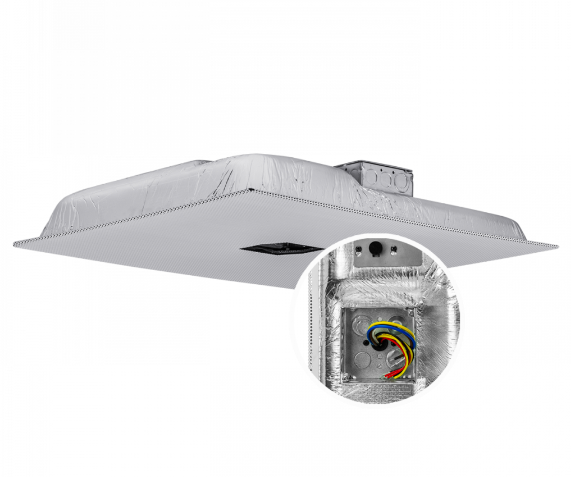

Quam's Fire Signaling and mass notification 2’ x 2’ Tile Replacement Loudspeaker 25/70 V UL22DM

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Quam's Fire Signaling and mass notification 2’ x 2’ Tile Replacement Loudspeaker 25/70 V UL22DM

Details

The Quam's Fire Signaling and mass notification 2’ x 2’ Tile Replacement Loudspeaker 25/70 V UL22DM, fitting seamlessly into 2' x 2' ceiling tiles. UL-certified, this shallow-depth fire signaling device features an 8" fire-resistant speaker, a 10 oz magnet, and a 4-watt 25/70V transformer with a rotary tap selector. Its rear-mounted electrical box makes conduit wiring connections simple. The powder-coated perforated steel grille provides exceptional durability, making it perfect for demanding applications. The UL22JB also includes four seismic tie-off points to comply with local safety codes. Its pre-assembled design allows for quick and easy installation, cutting down on labor time and costs.
