Free Design Quote

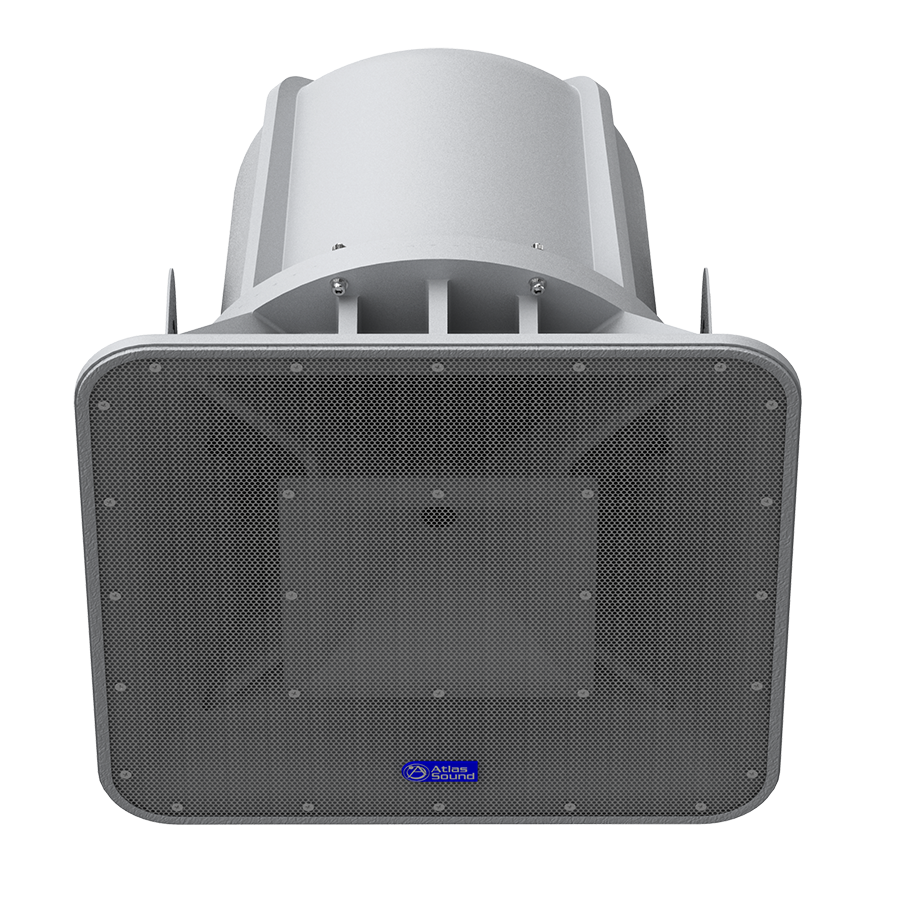

2-Way Stadium Horn System 8", 90°x90°

Be the first to review this product

MODEL: AH99-8T-BSG

Regular Price: $1,477.28

Special Price: $1,216.59

Add to Cart

OR

Product Features


  • Heavy duty mounting bracket (included) allows for easy installation to most any flat surface

  • Three forged eyebolts also included for suspended installation

  • 100 watts power handling

  • Constant directivity design offers controlled coverage of 90° horizontal by 90° vertical (2kHz octave band)

  • Driver compliment includes 8" cast frame woofer with a concentrically mounted 1" exit compression driver coupled to a 90° H x 90°V HF horn/li>

  • Easy, weather resistant connection via a convenient recessed terminal block located on the bottom of the loudspeaker

  • Includes a built-in, high efficiency 60 watt 70.7V transformer

  • Efficiency rating of 101dB (1 W/1 M)

  • Maximum output of 121dB (Rated Power @ 1 M)

2-Way Stadium Horn System 8", 90°x90°

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

The AH99-8T-BSG from Atlas Sound is a stadium horn system perfect for football stadiums, baseball fields, sports arenas, auditoriums and convention centers. The horn system is ideal for directional sound distribution where full range reproduction, maximum intelligibility and high sound pressure levels are required. The Stadium horn is a weather resistant horn with multiple screen configuration that prevents moisture from damaging internal components. A perforated aluminum screen covers the large horn mouth, a secondary screen is in place forward of the high frequency driver and a third tightly perforated screen protects the 8" cast frame woofer. The horn also has a "weep" hole included on the back of the large horn "bell" to allow evaporation of any condensation that might build up internally.
